Solid-State AM/FM Stereo Tuner (1973-76)
- Dimensions (WHD)
- 435 x 153 x 300 mm / 17.1 x 6 x 11.8 inch
-

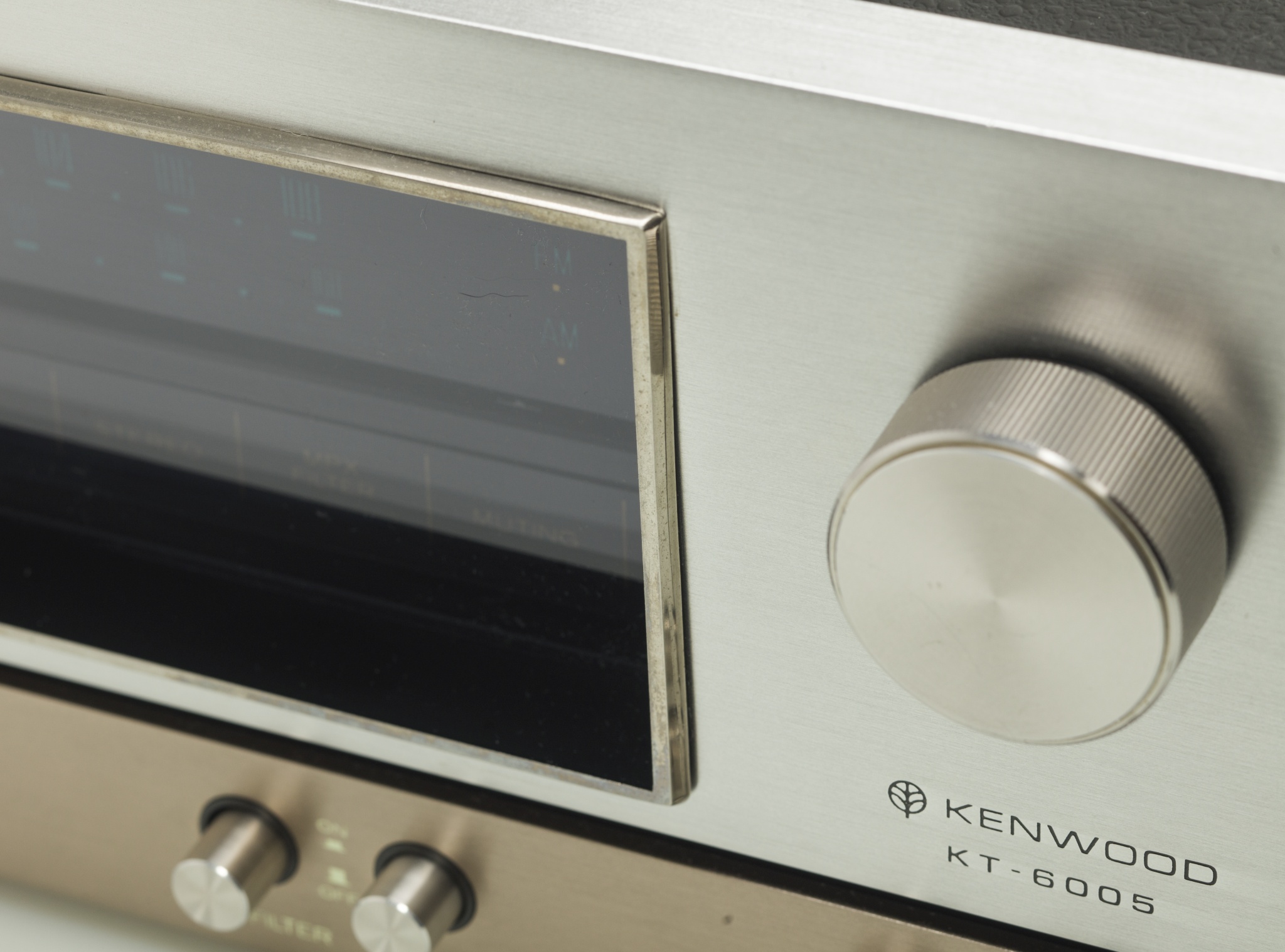

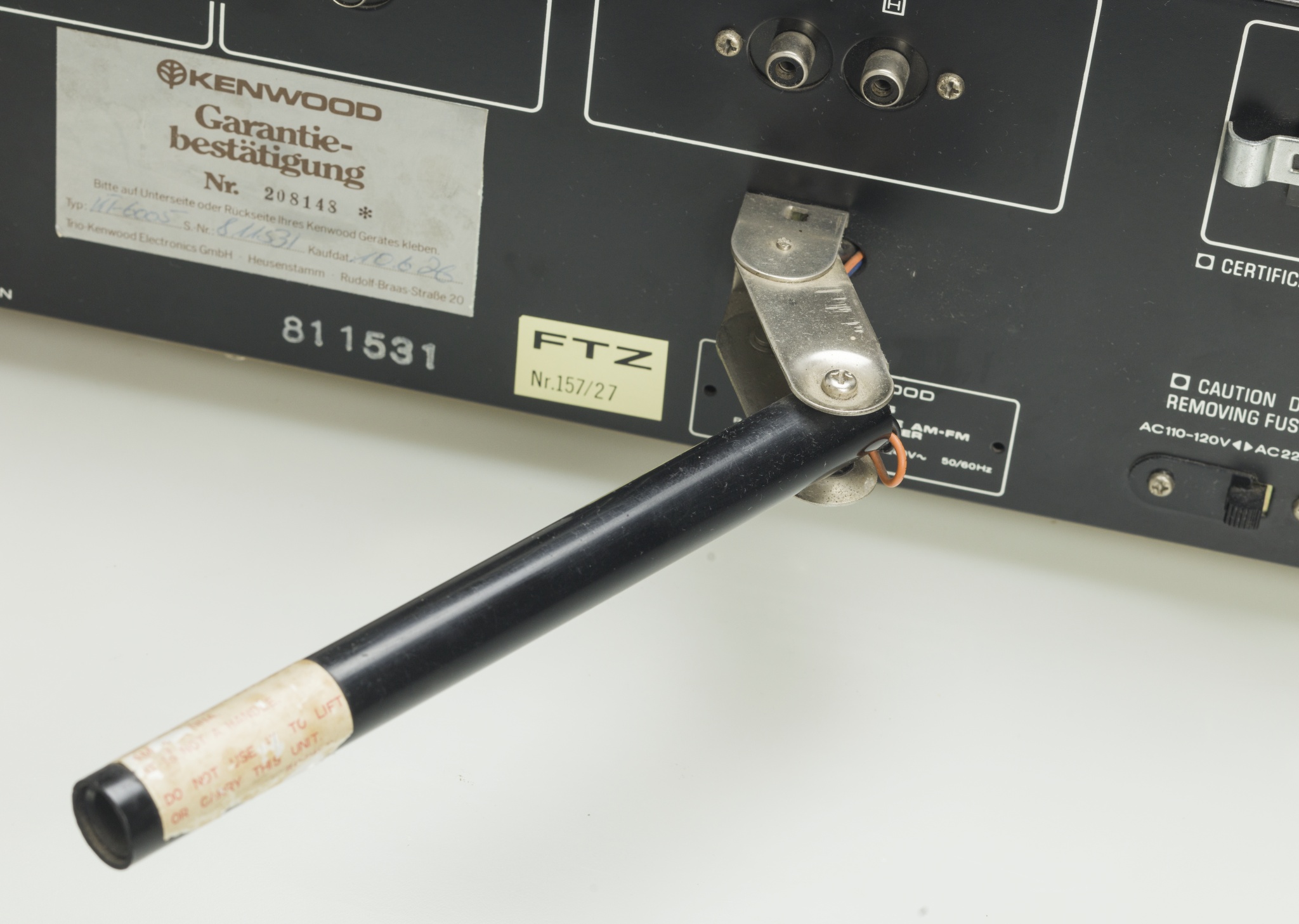

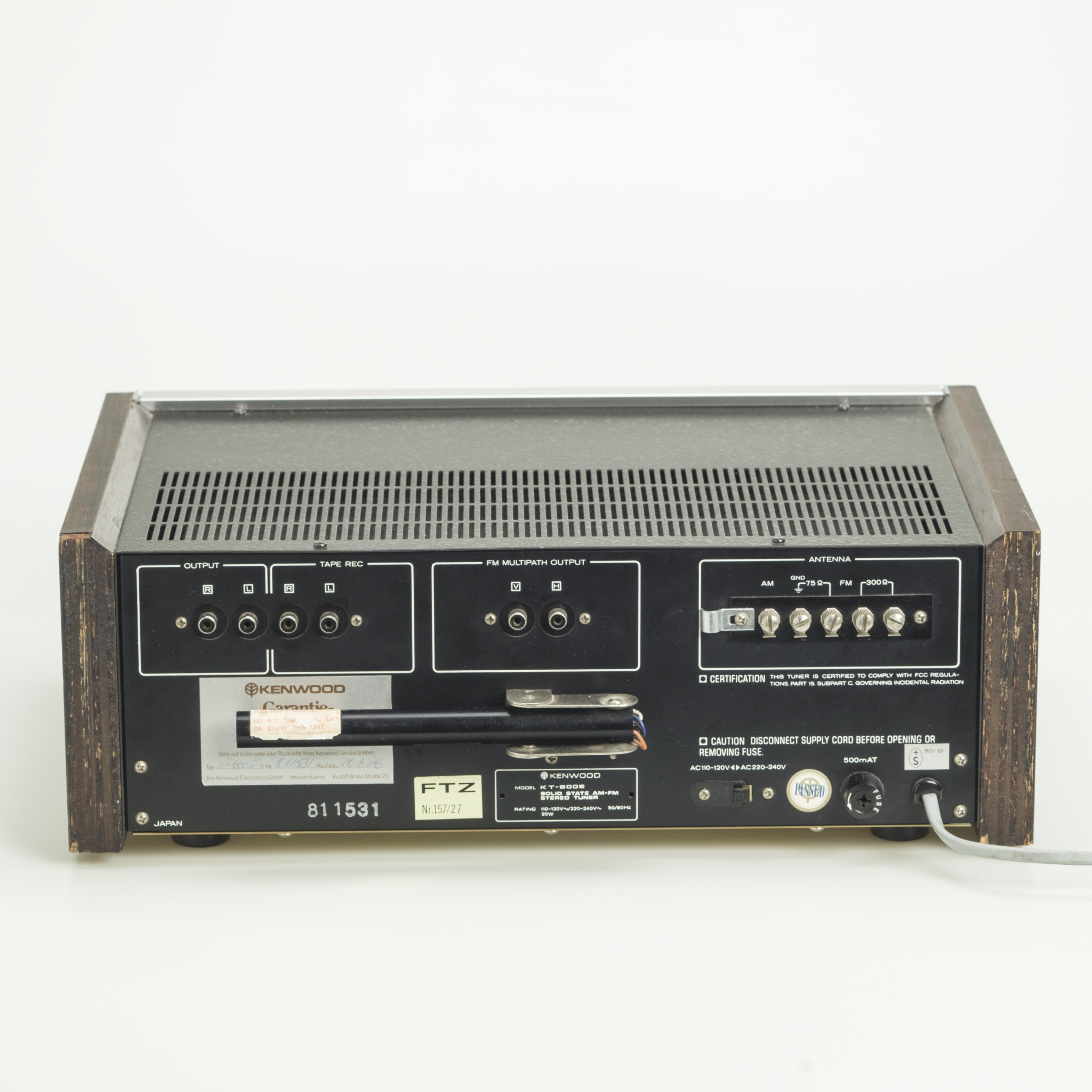

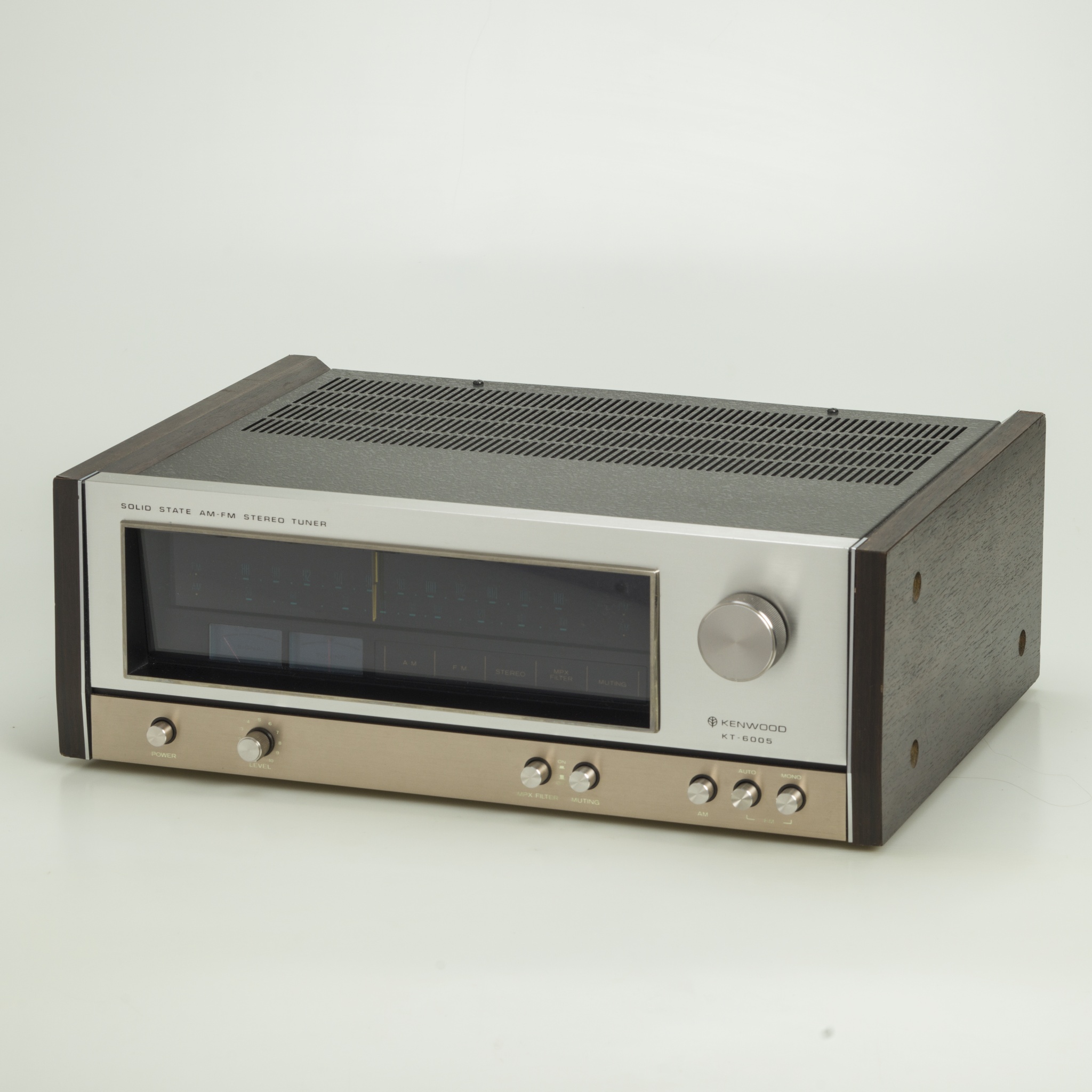

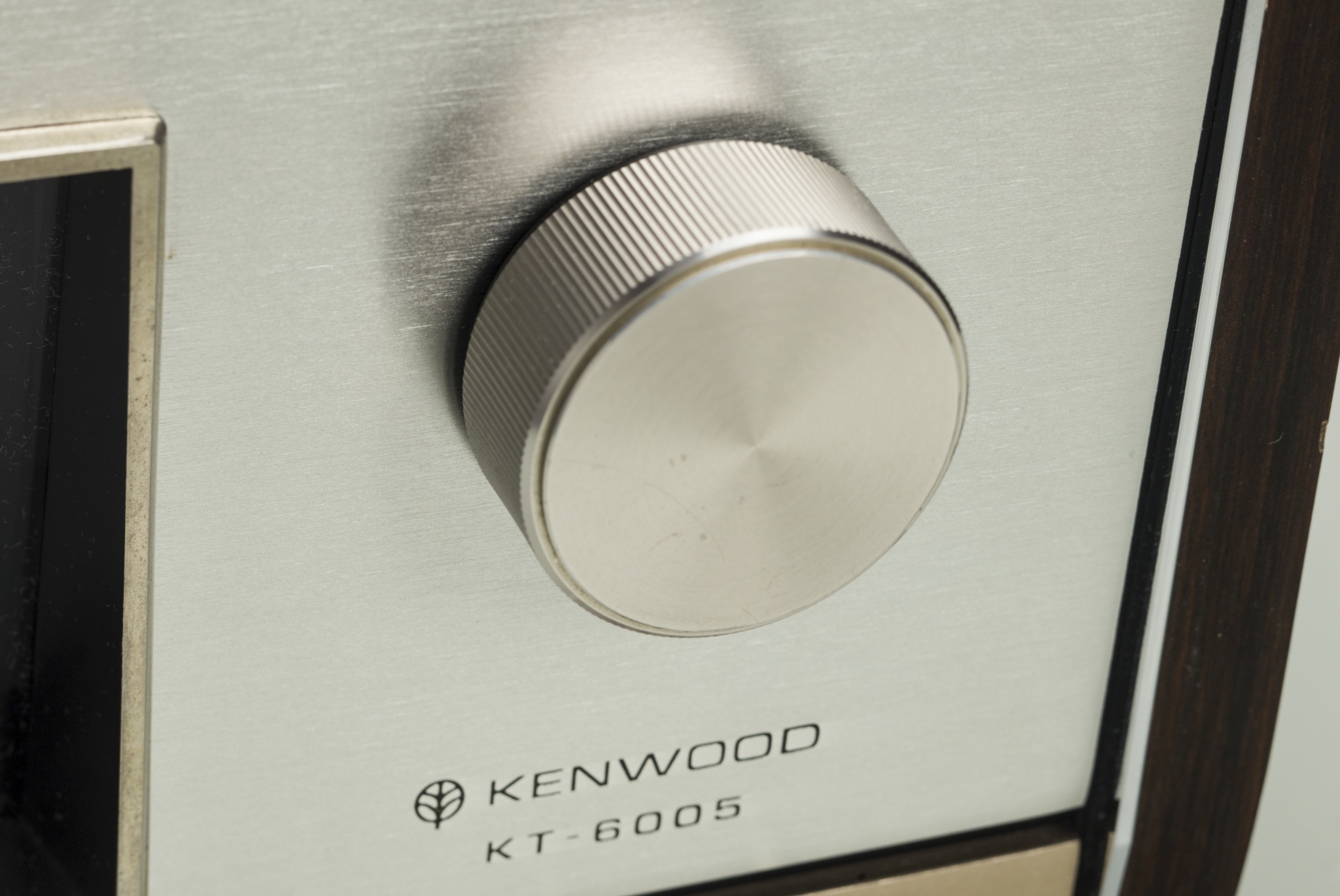

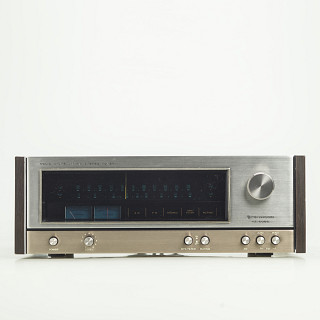

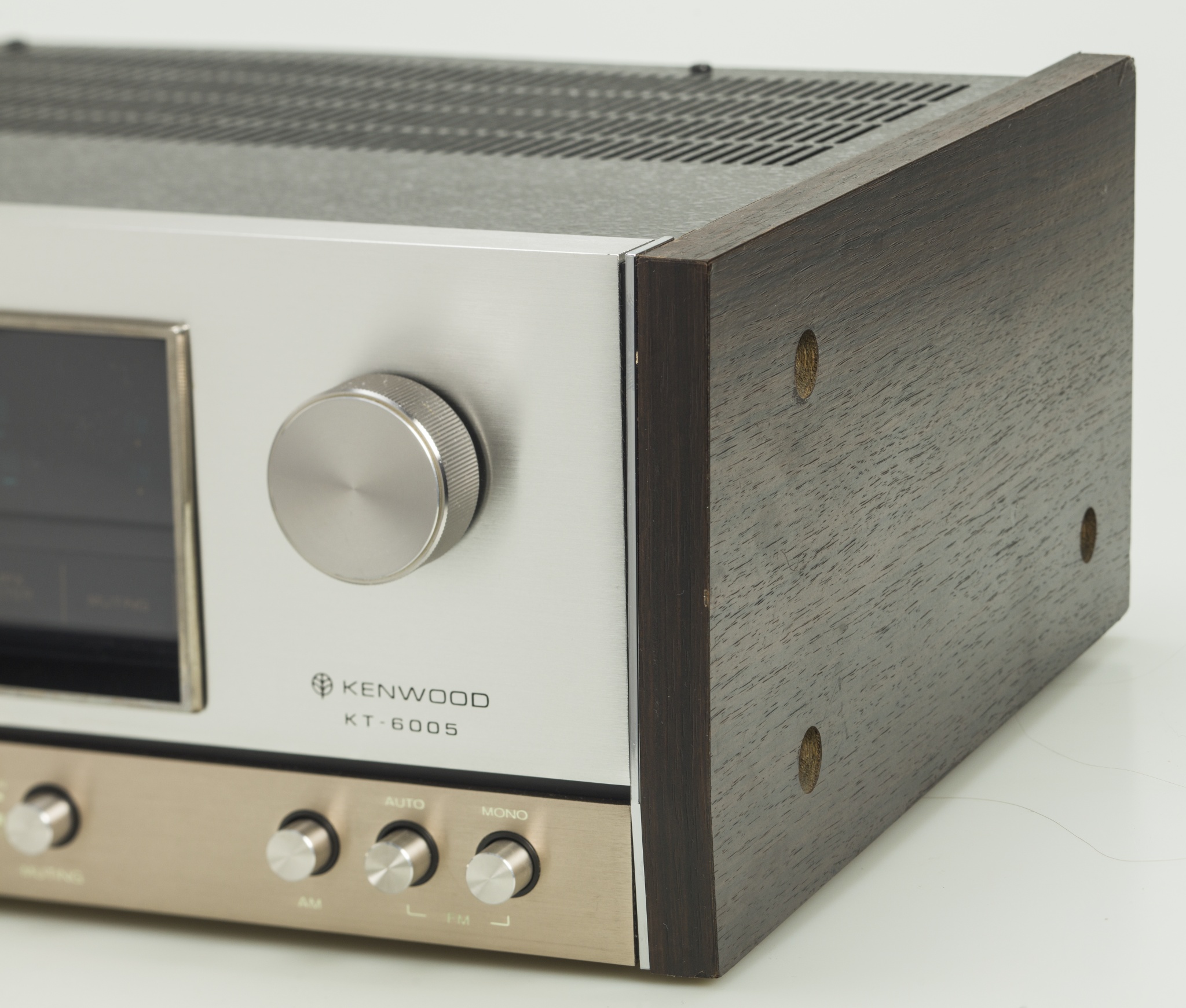

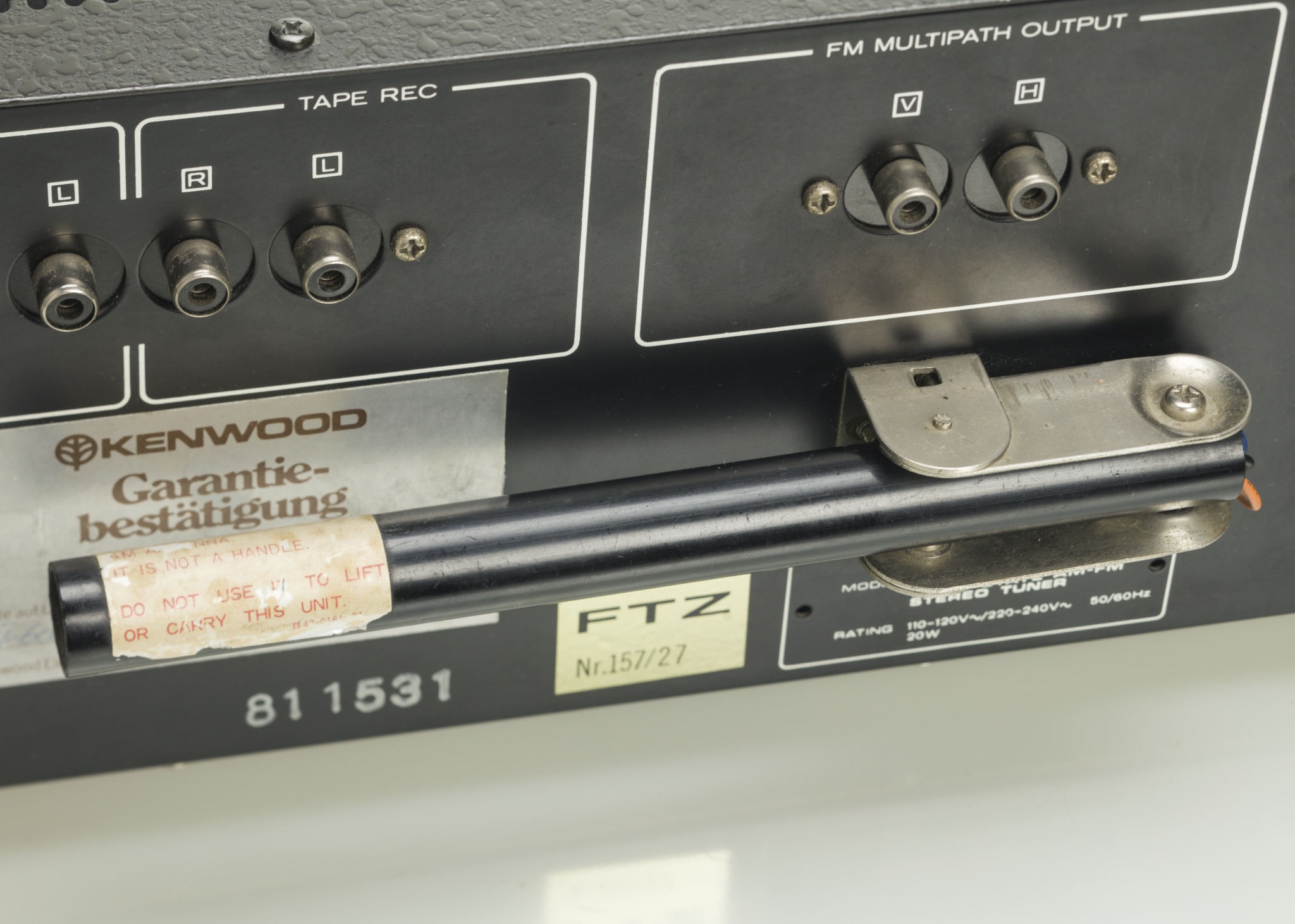

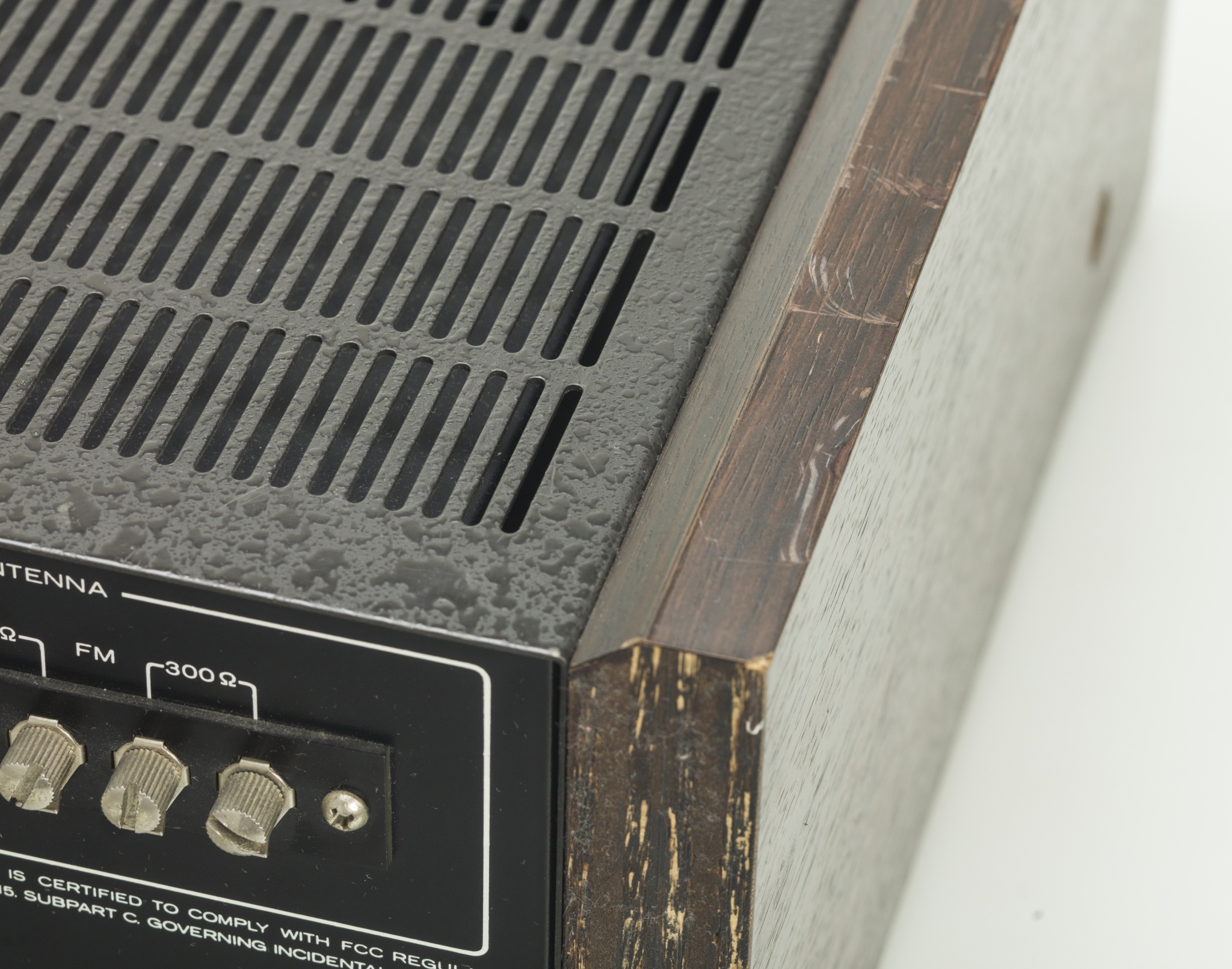

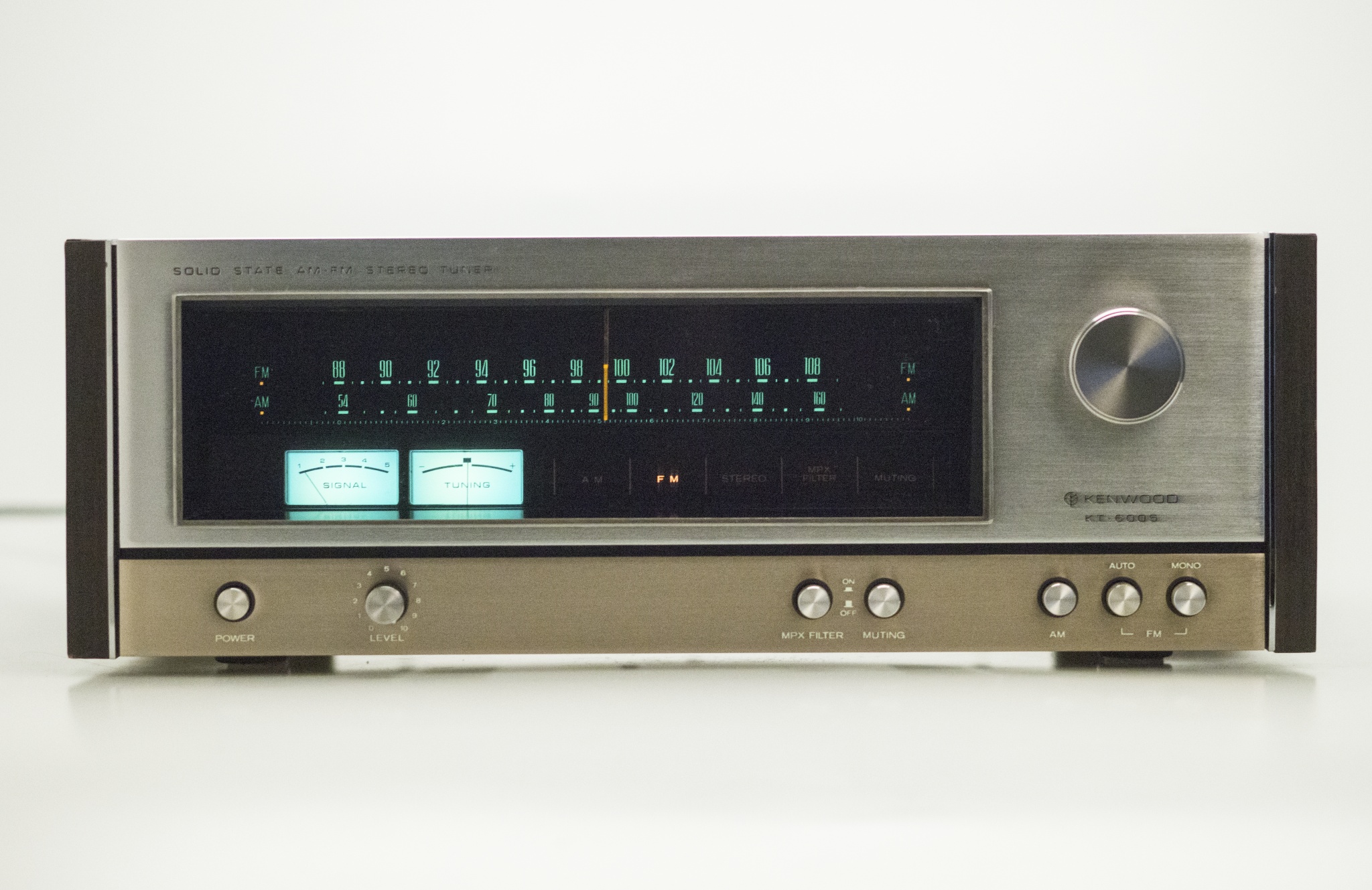

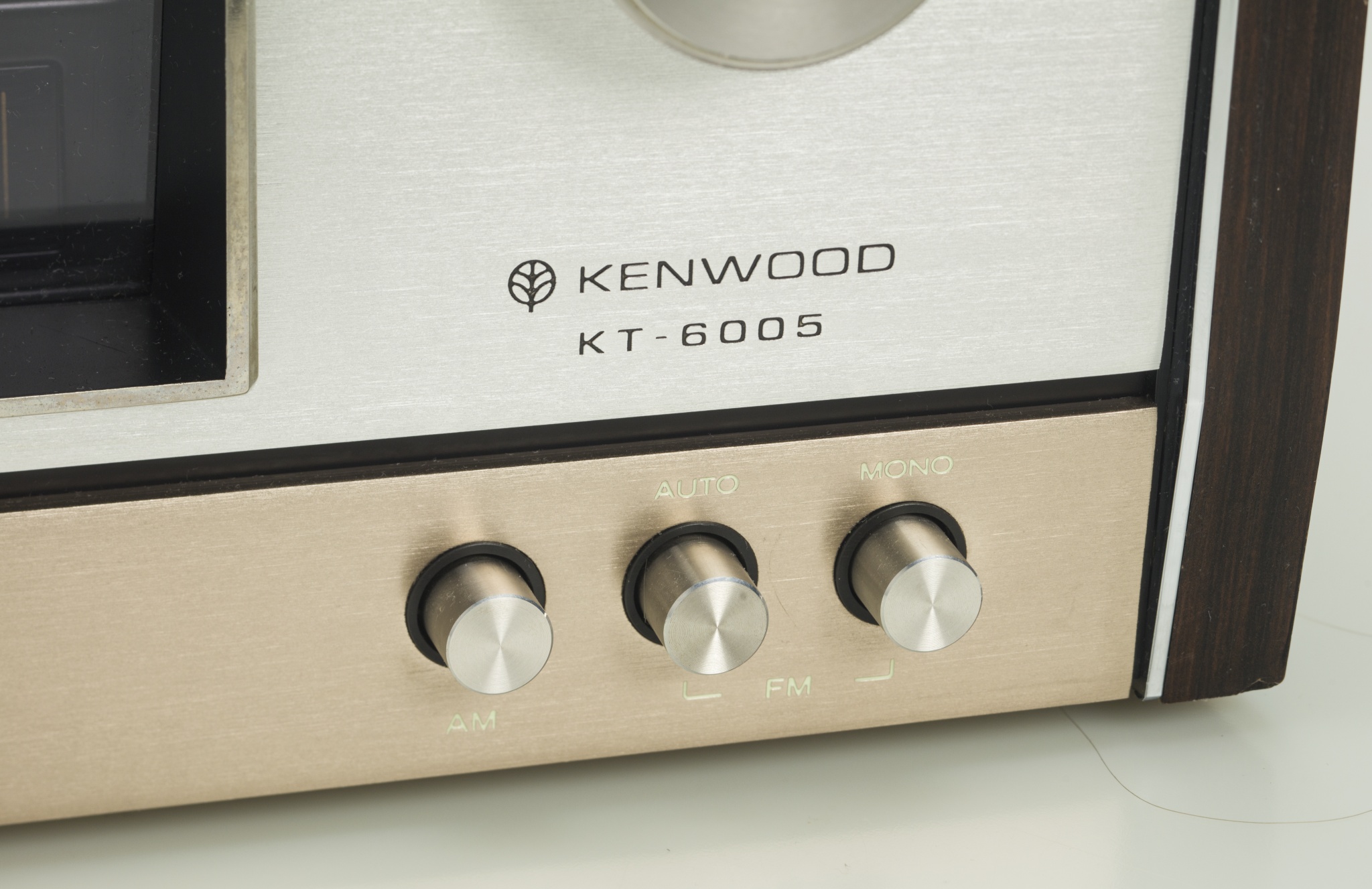

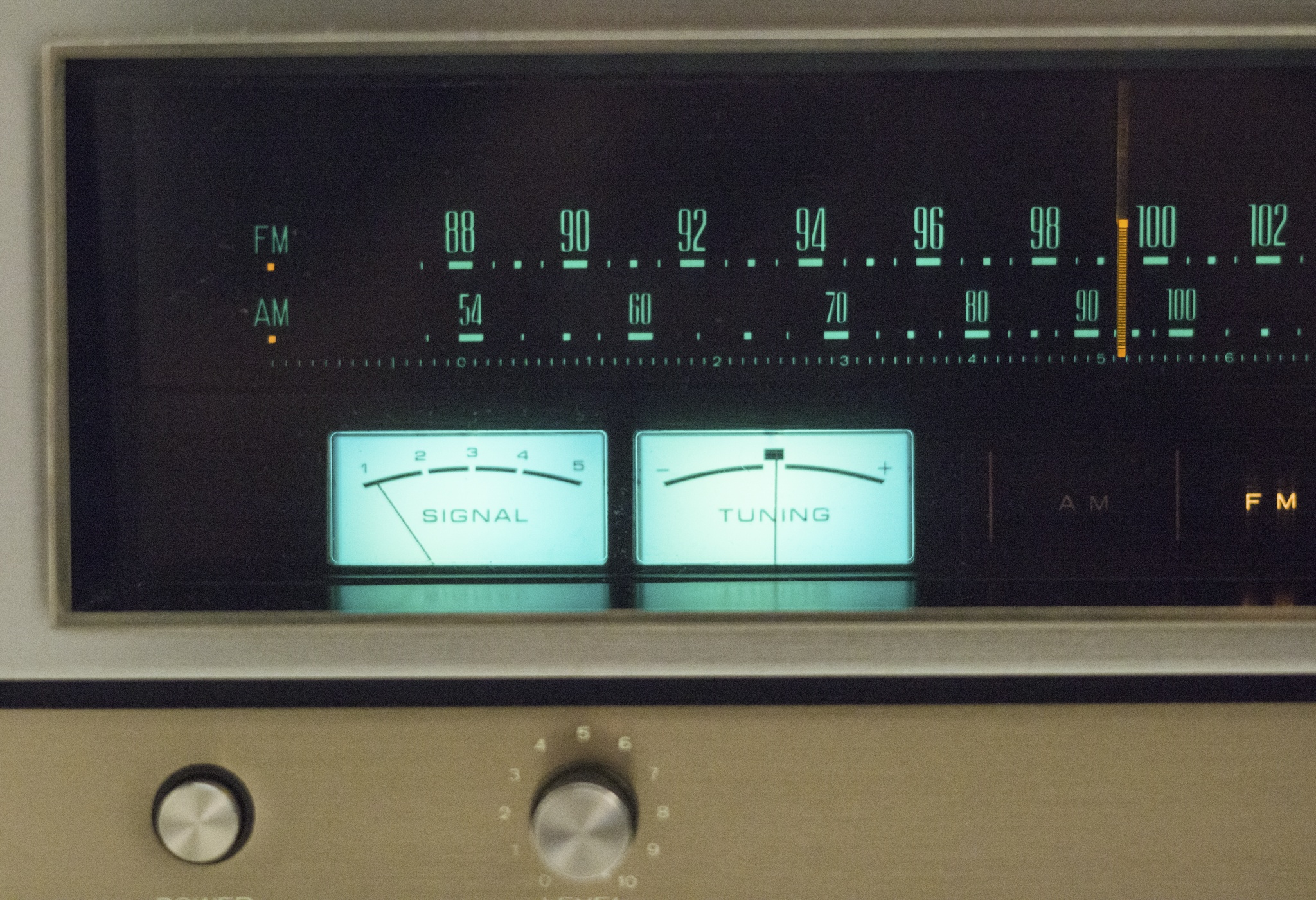

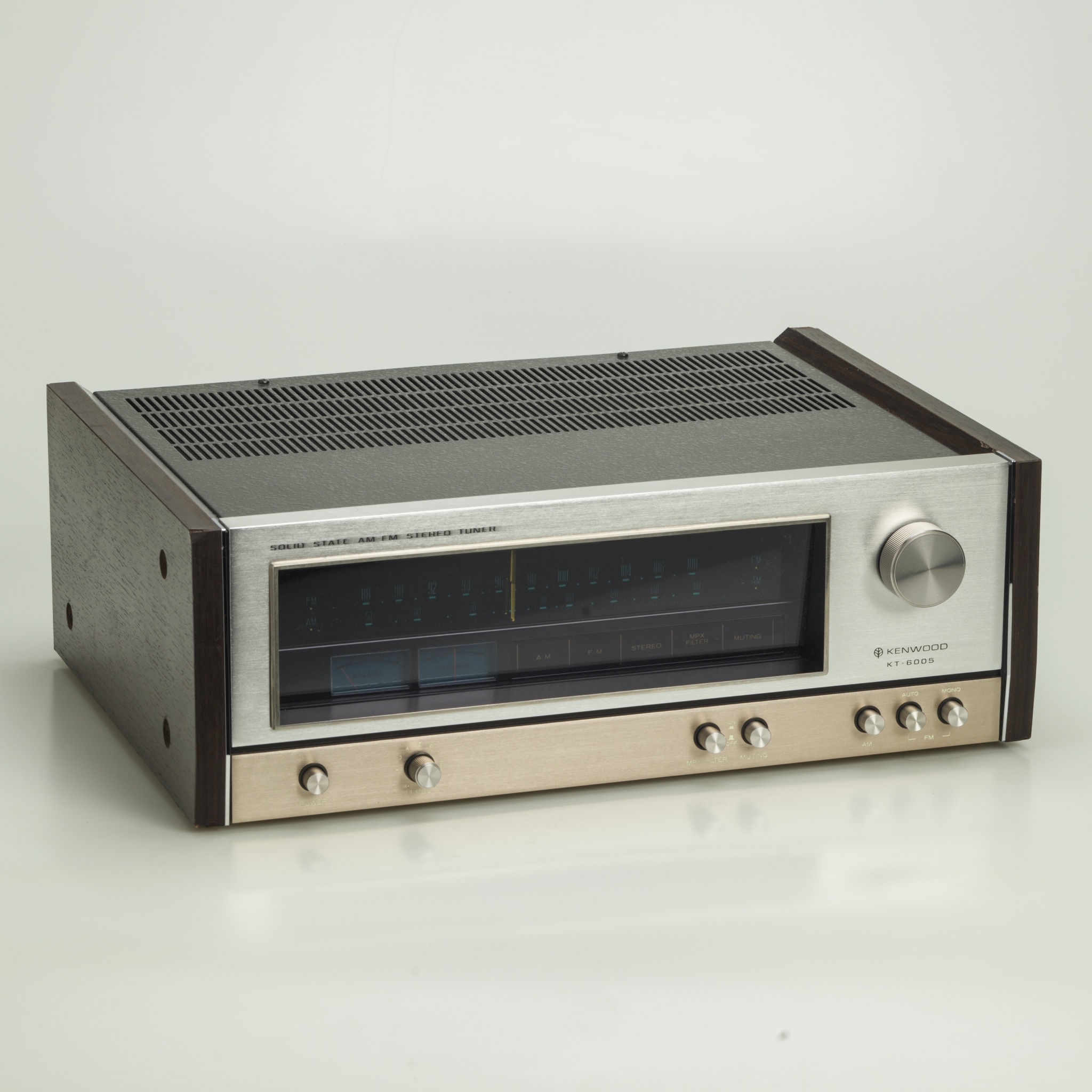

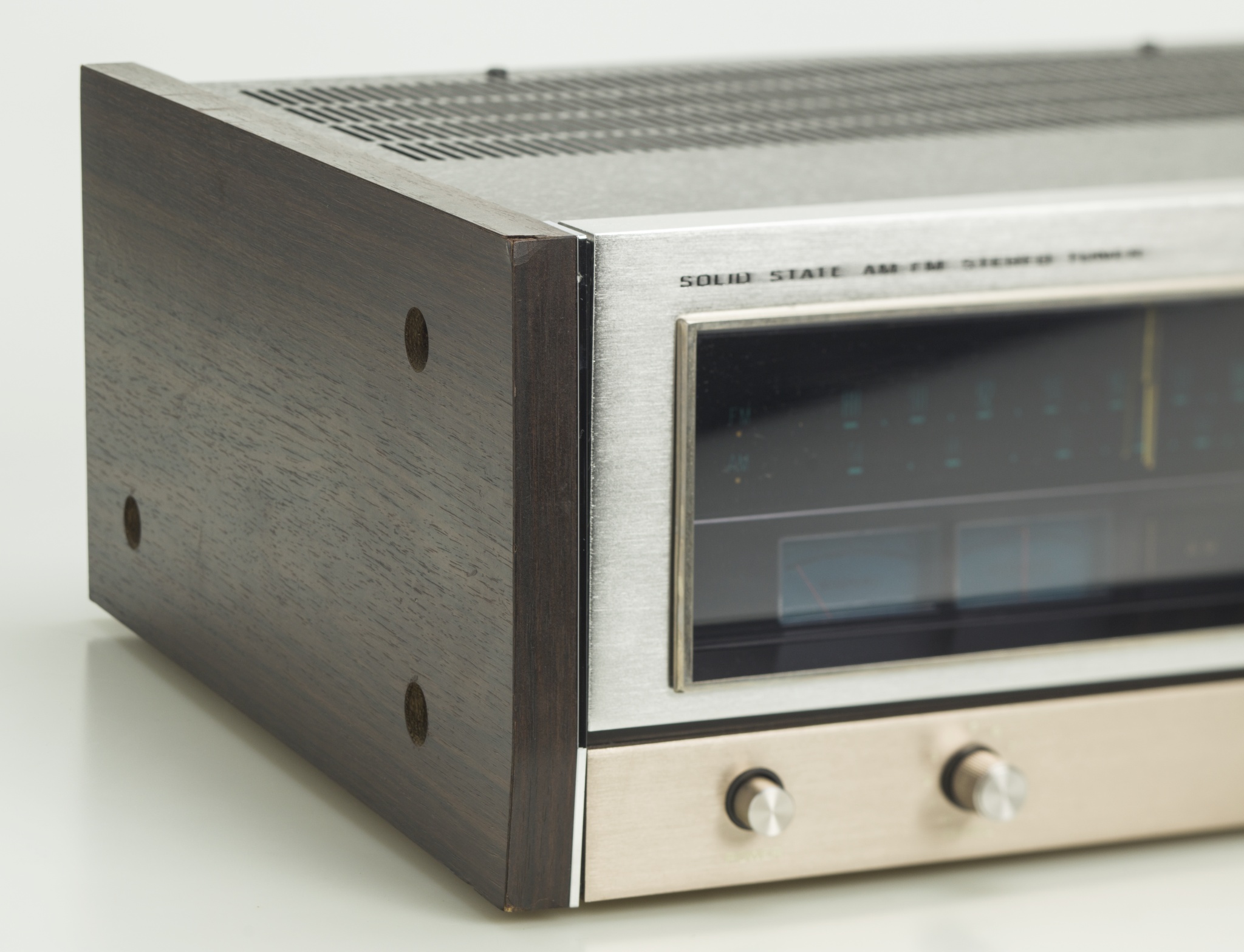

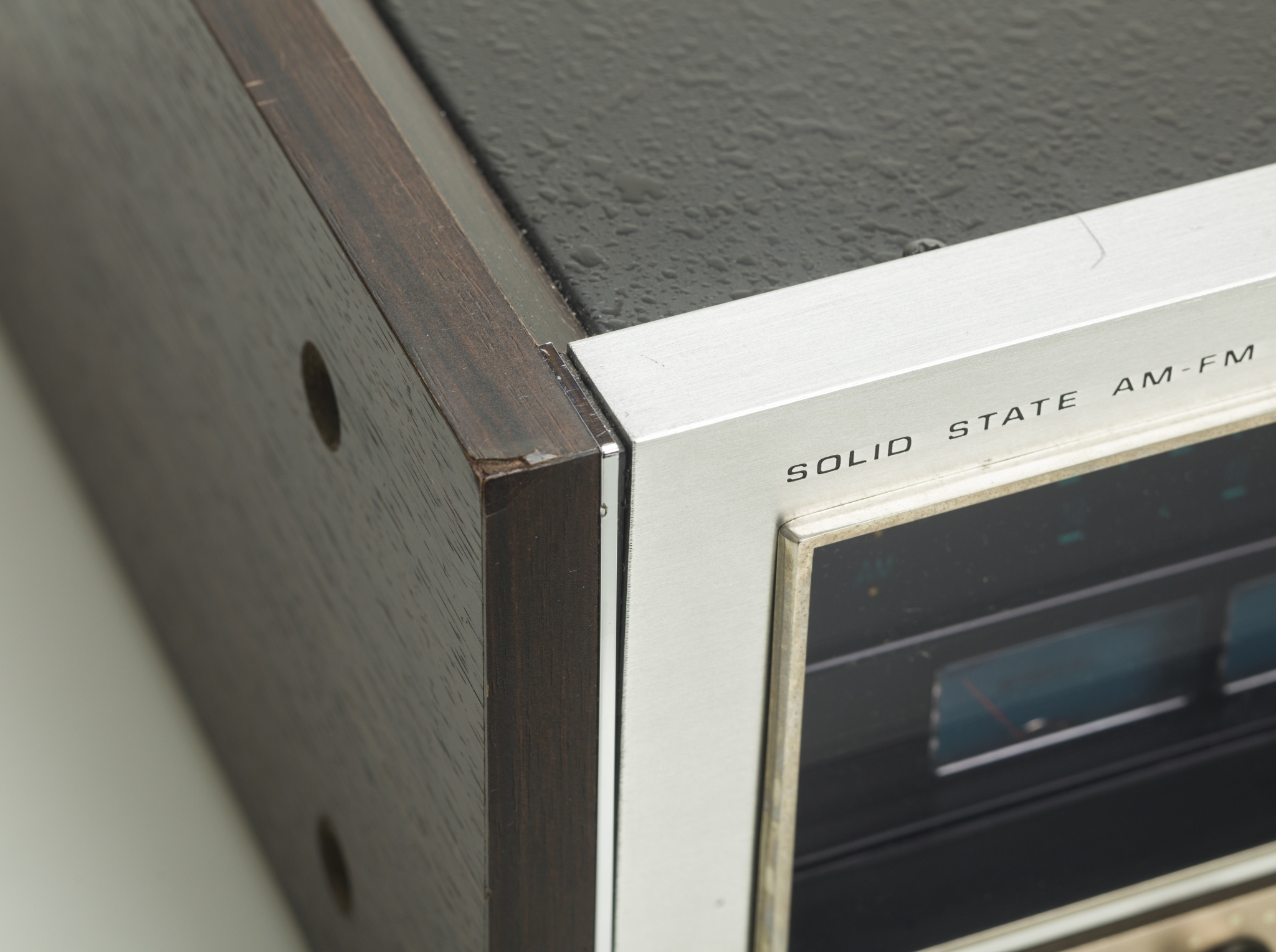

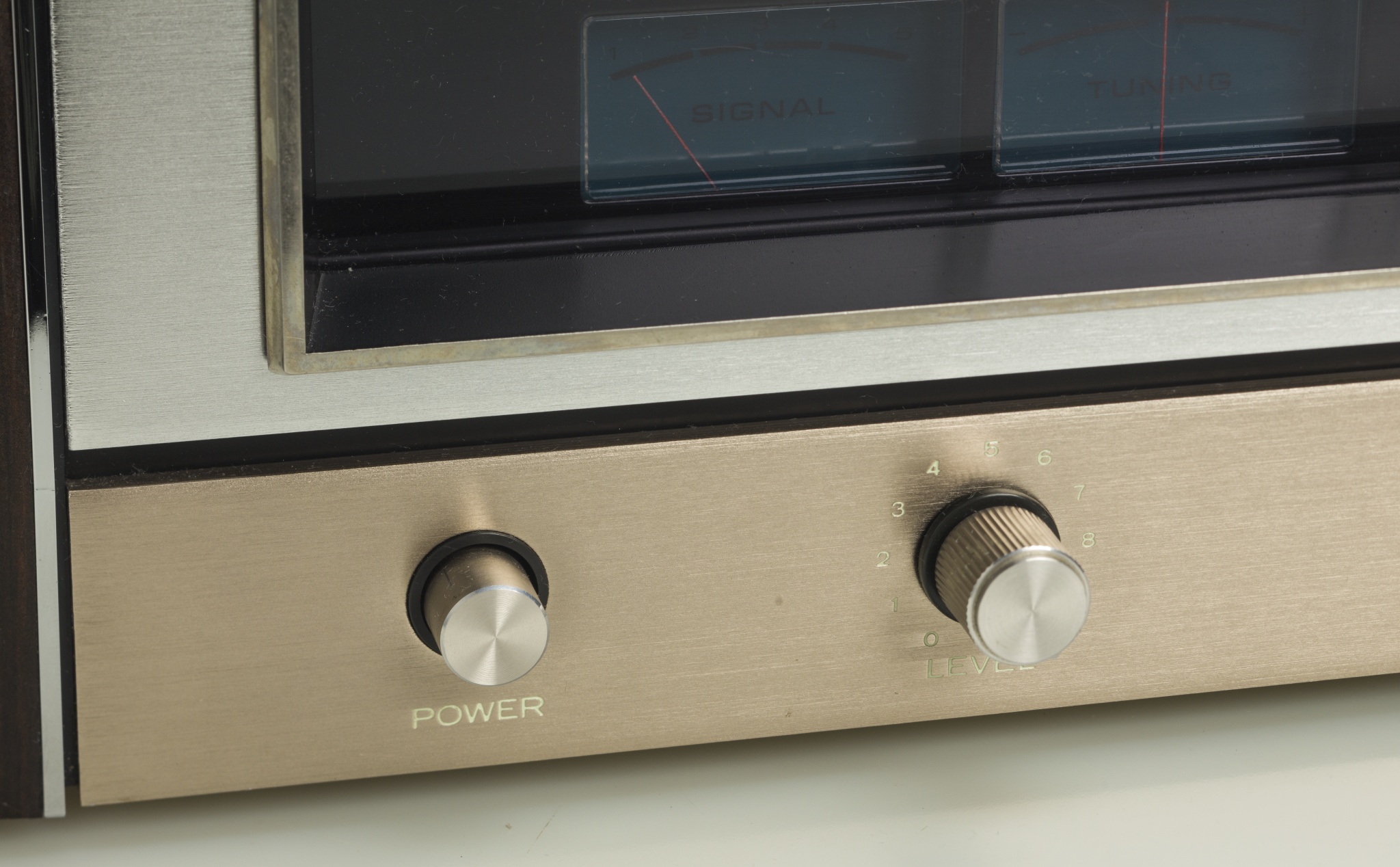

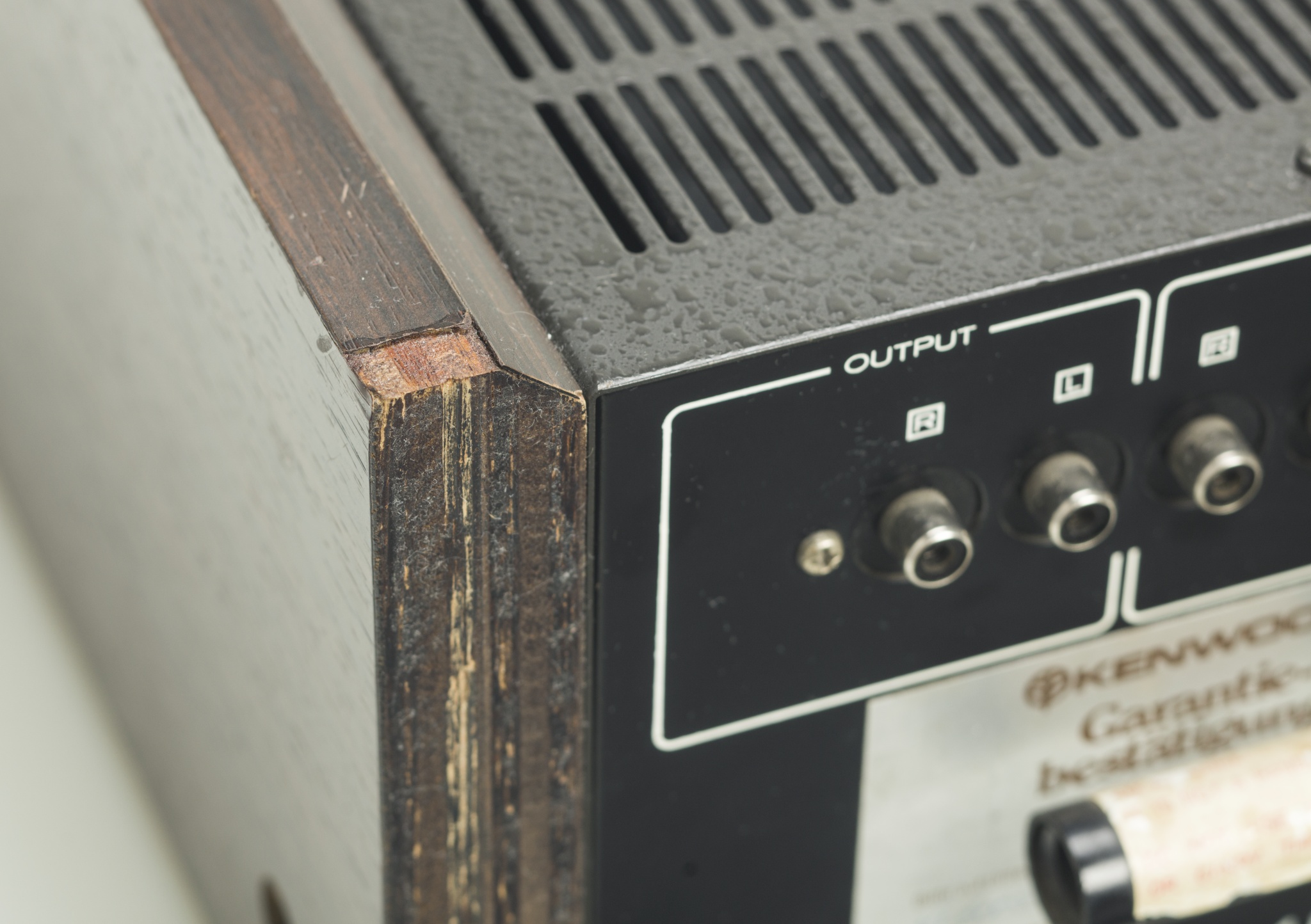

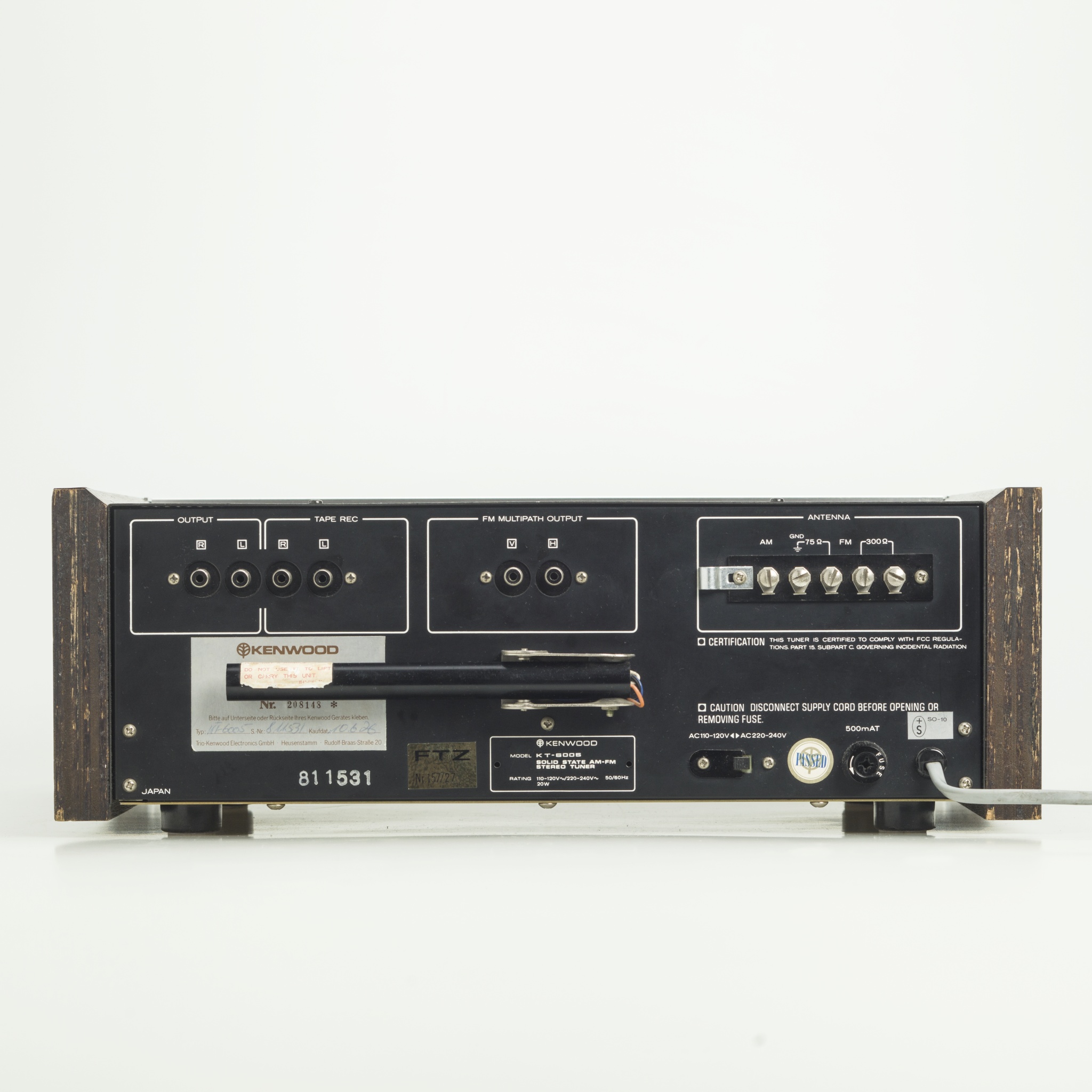

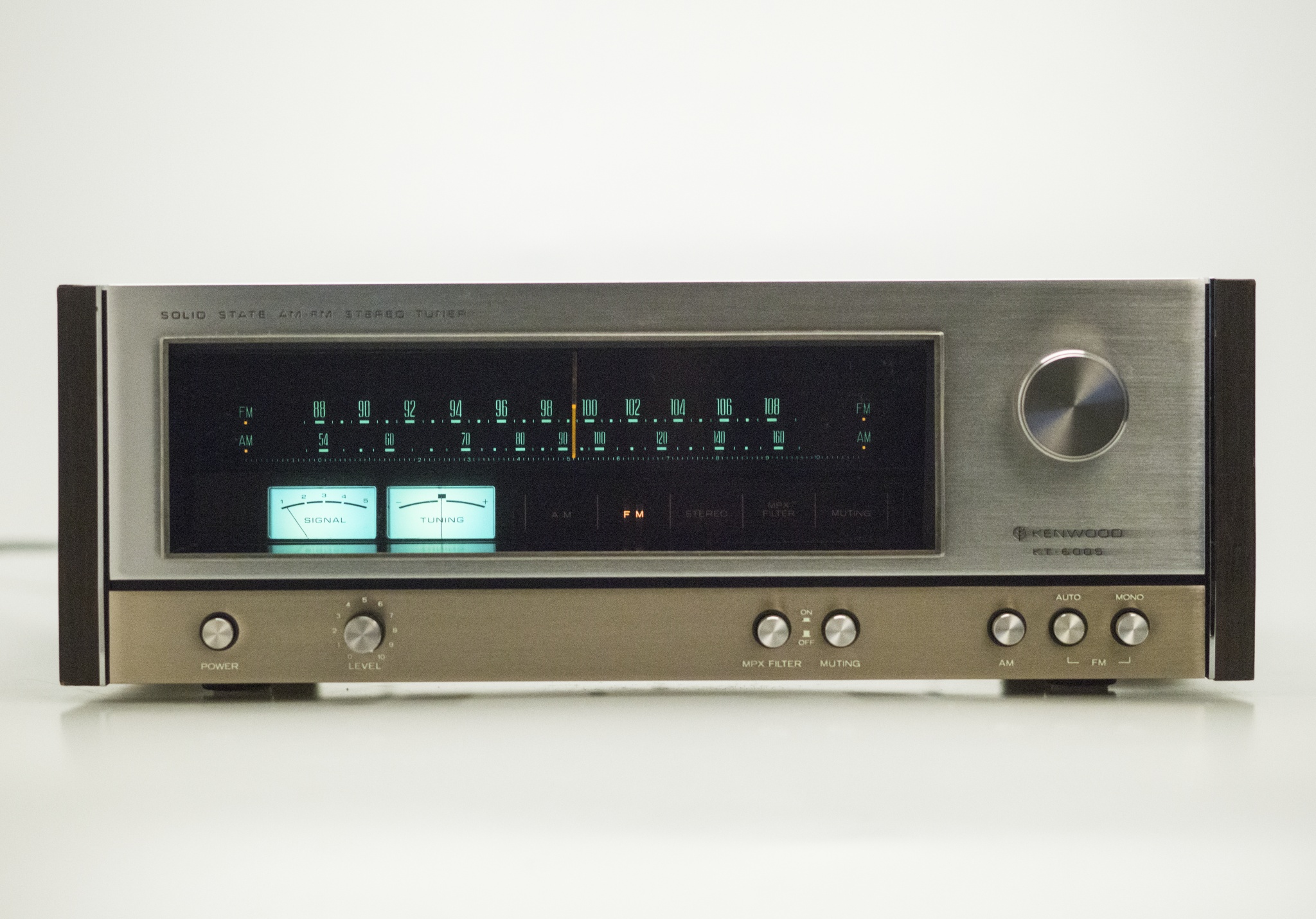

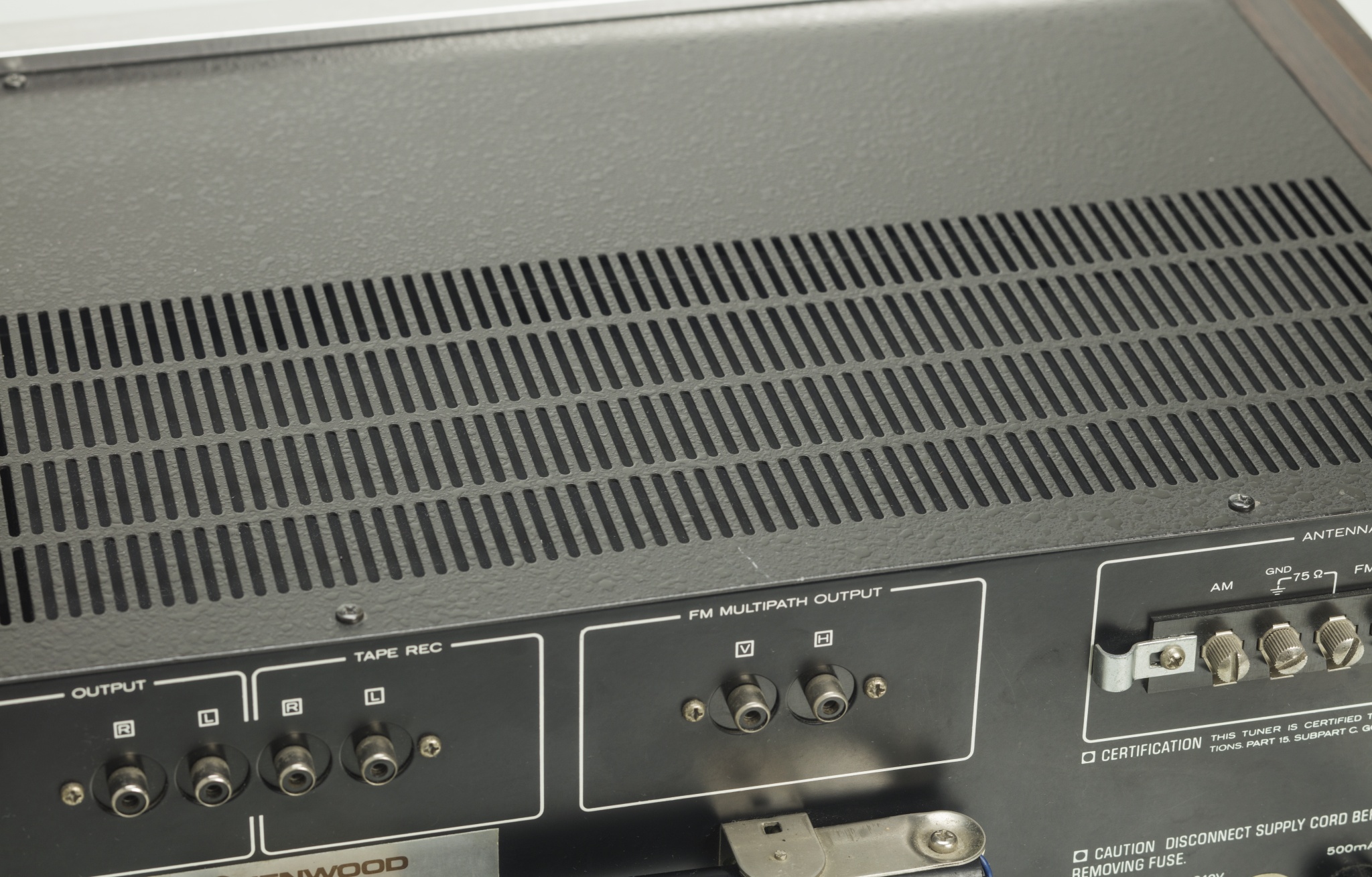

A hi-fi AM/FM stereo tuner with an analogue dial housed in a wooden case. With Signal and Tuning meters, indicators for AM, FM, Stereo, MPX Filter and Muting, rotary Tuning and Level controls, On/Off push button switches for MPX Filter and Muting, push buttons for AM, FM Auto and FM Mono. On the back, an adjustable ferrite bar antenna, terminals for AM and FM antennae, RCA phono sockets for Line Output, Output to a Tape recorder and for FM Multipath Output.
Specification FM SECTION Antenna Impedance 300Ω balanced, 75Ω unbalanced Usable Sensitivity IHF 1.5µV Quieting Slope 55dB at 3µV
65dB at 10µV
70dB at 50µVFrequency Response 20Hz to 15kHz +0.2dB,-1.0dB Harmonic Distortion
(100% mod. with 400Hz)Mono < 0.3%
Stereo < 0.5%S/N Ratio > 70dB Capture Ratio, IHF 1.3dB Image Rejection > 90dB Selectivity, IHF (Alt. channel) > 80dB IF Rejection > 100dB Spurious Signal Rejection > 100dB AM Suppression > 60dB Stereo Separation > 45dB at 400Hz
> 38dB at 100Hz to 8kHzSub Carrier Suppression > 65dB Output Voltage 1.5V at 100% mod. with 400Hz Output Impedance 10.5kΩ+ AM SECTION Antenna Built-in ferrite antenna
External antenna terminalUsable Sensitivity, IHF 13µV (Ext. antenna terminal)
300µV/m (Ferrite antenna)Selectivity, IHF > 35dB Image Rejection > 70dB IF Rejection > 70dB S/N Ratio > 50dB at 1mV input Output Voltage 0.15V at 30% mod. with 400Hz Power requirements

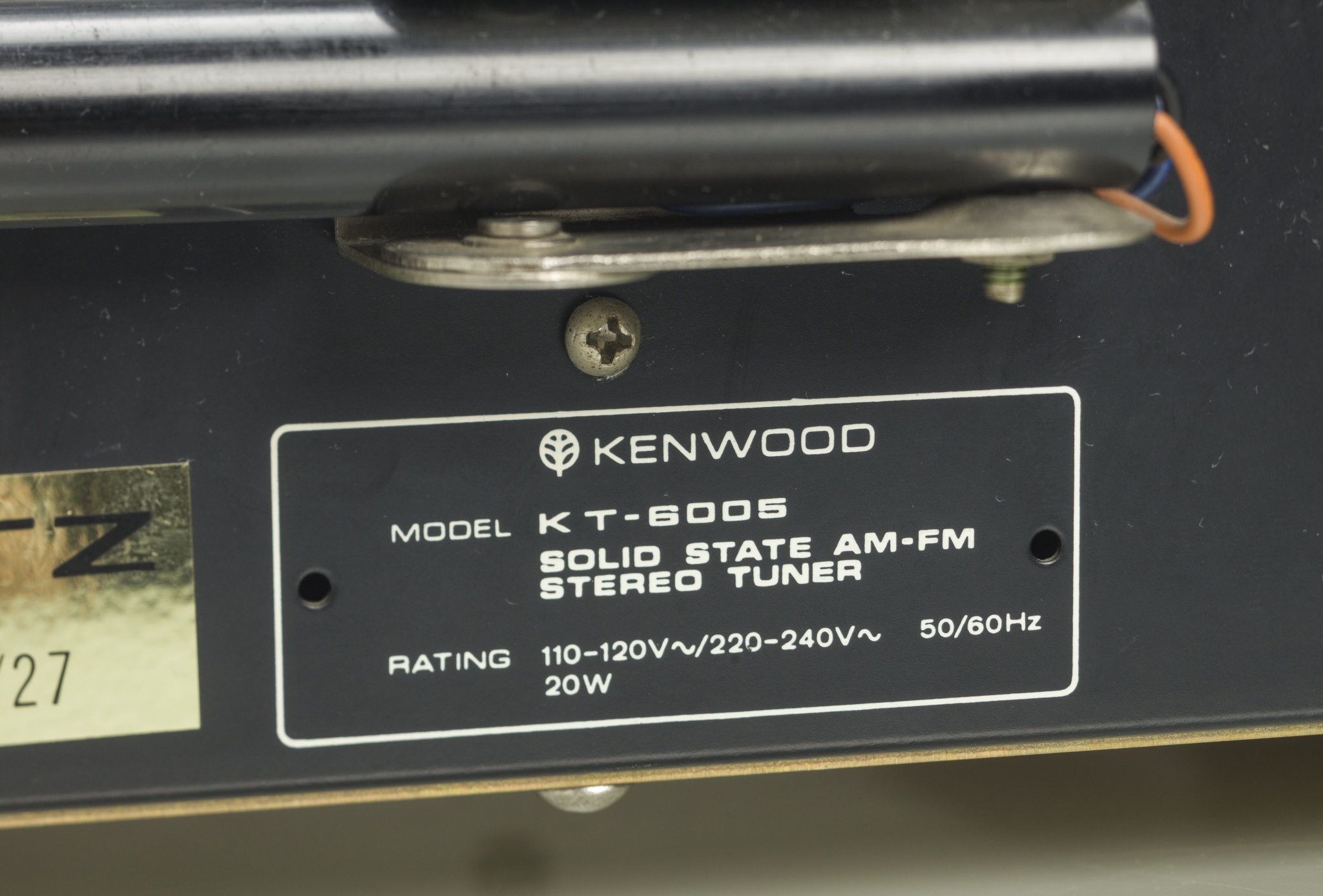

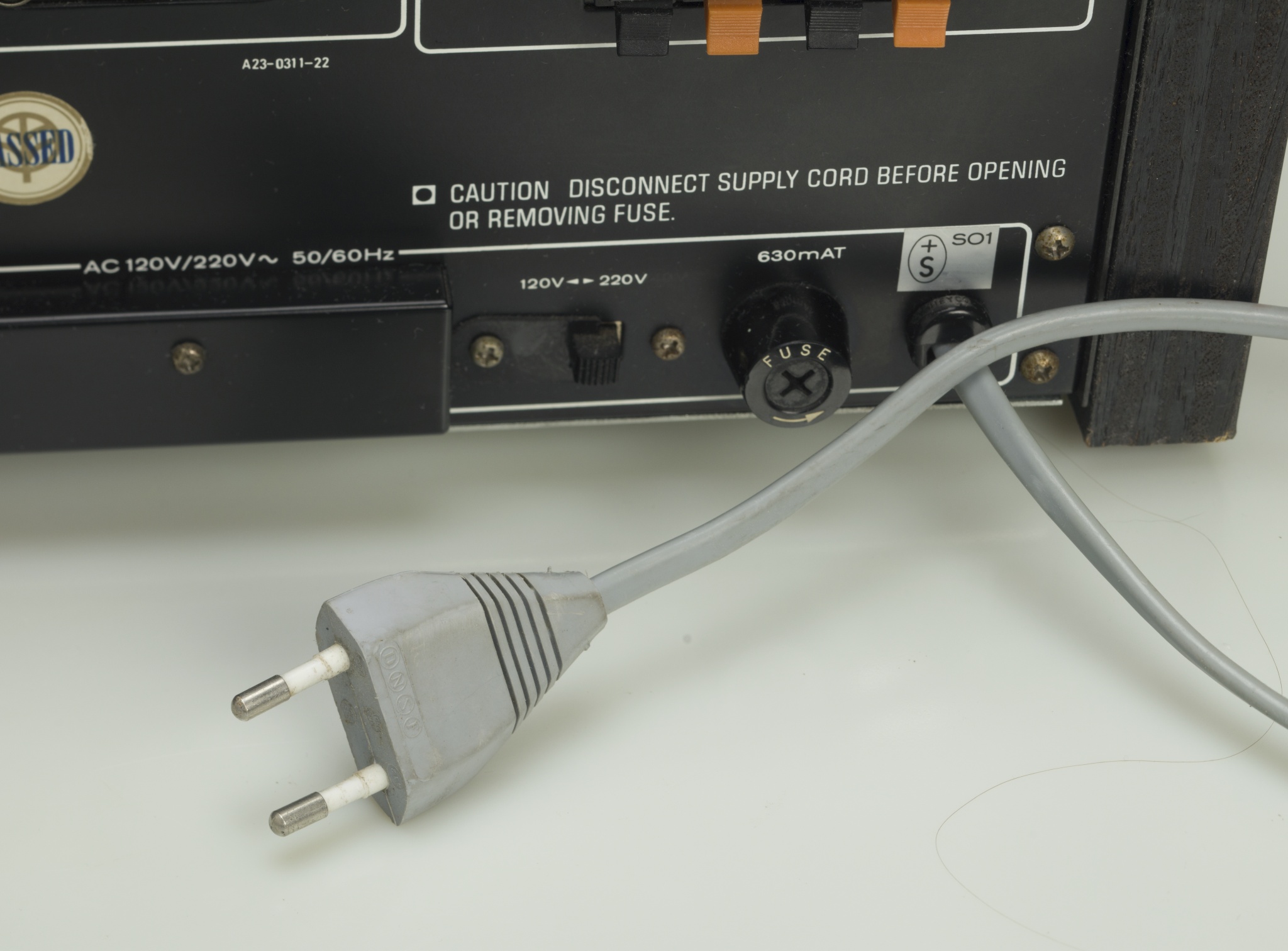

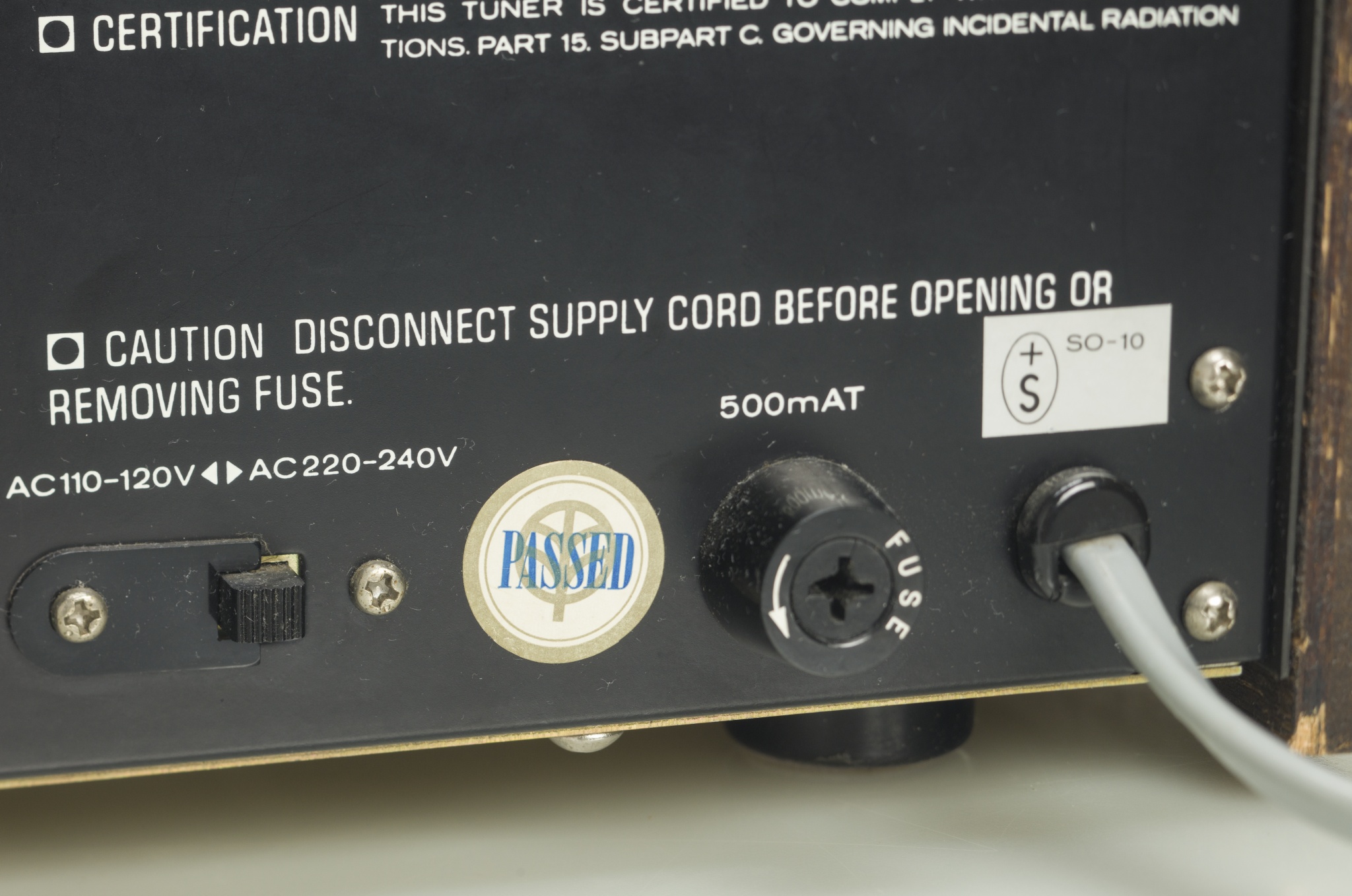

110-120V, 220-240V AC 50/60Hz SwitchablePower Consumption: 20 Watts
- 8.9 kg / 19 lb 9.7 oz (19.604 lb)
