Ortofon stylus Concorde MkII CLUB
Info
Description

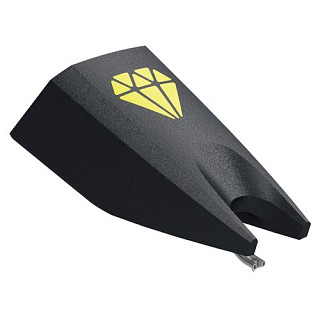

Replacement stylus for Concorde MkII CLUB
Output voltage at 1000Hz, 5cm/sec. - 8 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-20.000 Hz
Tracking ability at 315 Hz at recommmended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical Elliptical r/R 13/25 μm
Tracking force range - 2 - 4 g
Tracking force recommended - 3 g
Recommended exclusively for Concorde MkII CLUB
