Description

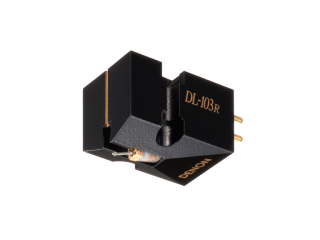

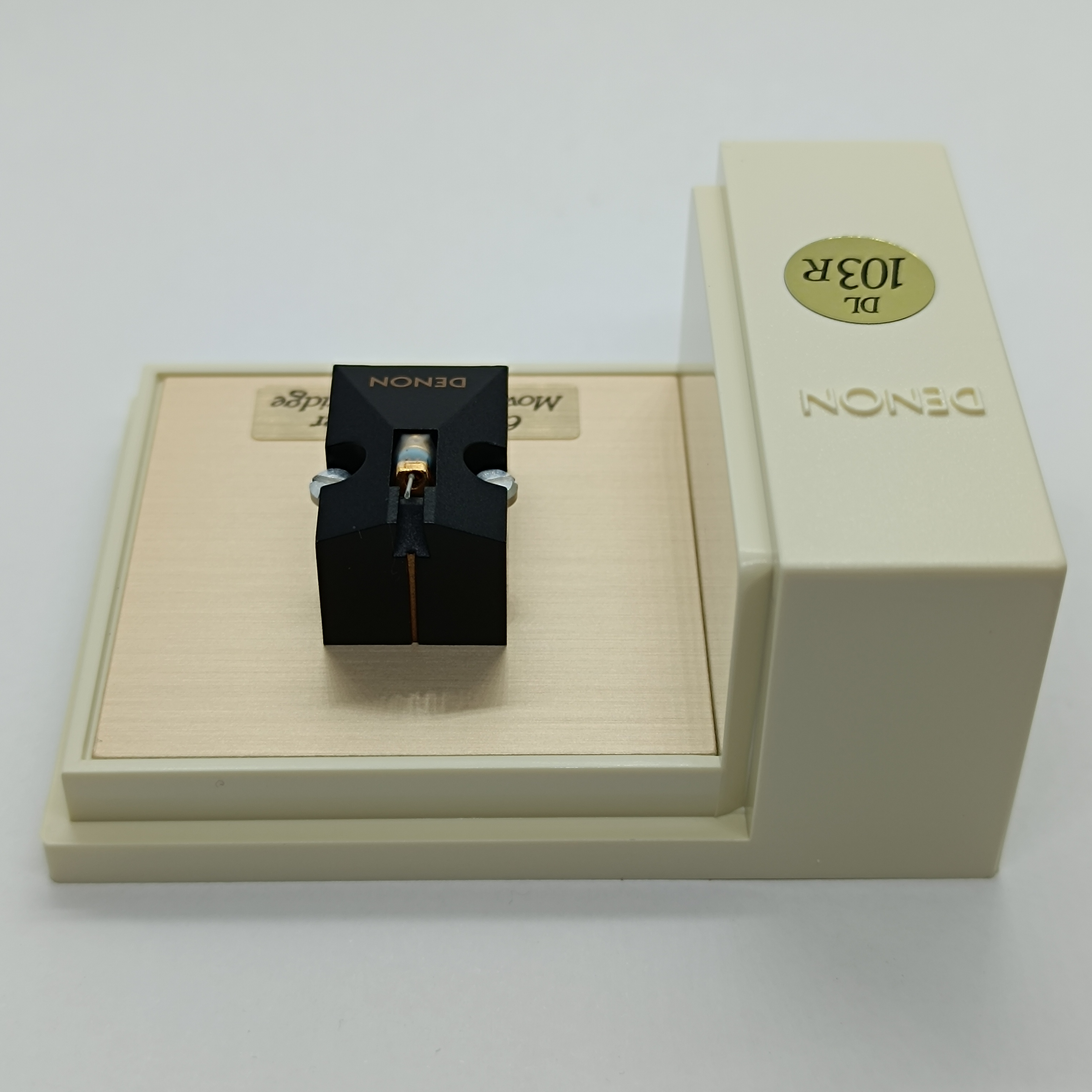

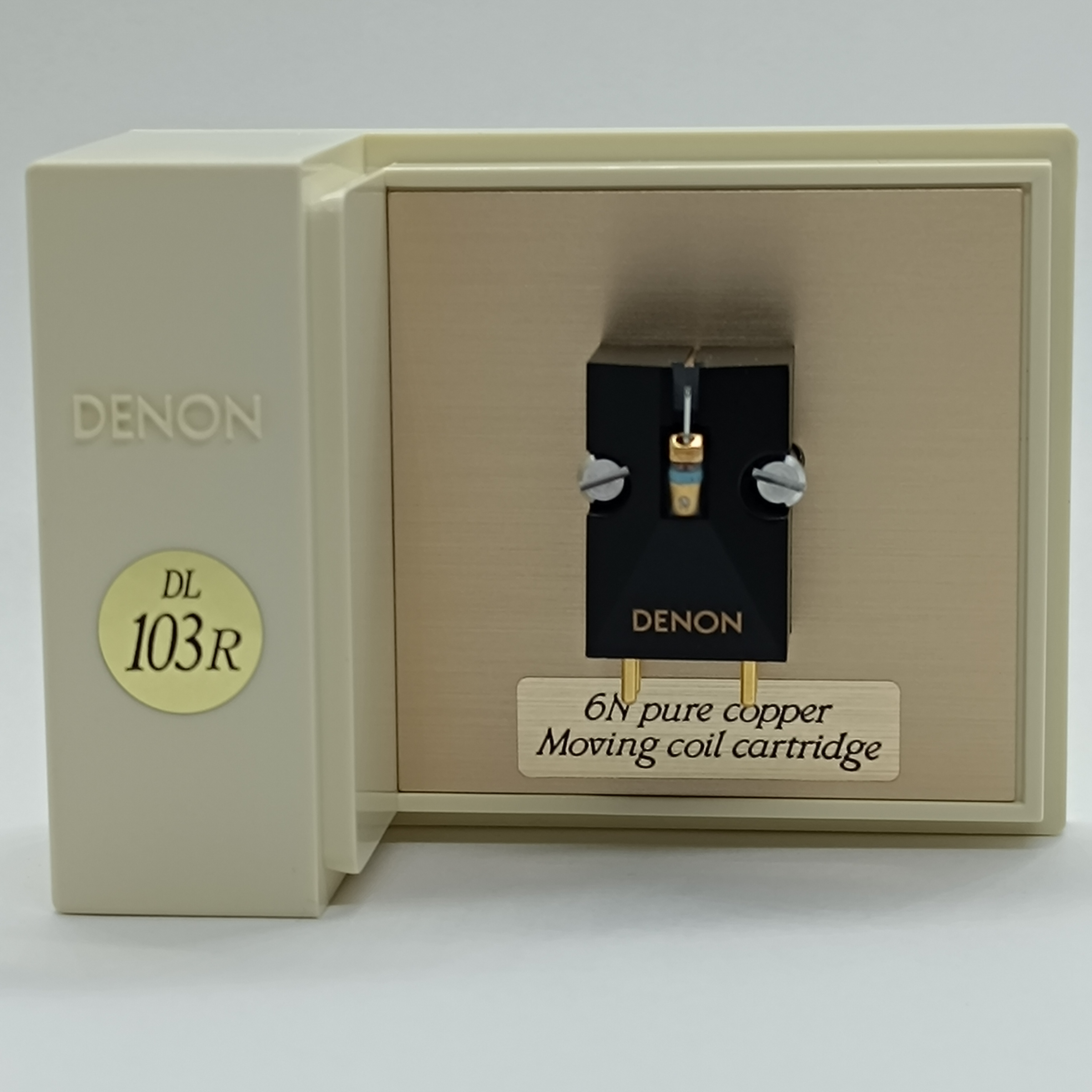

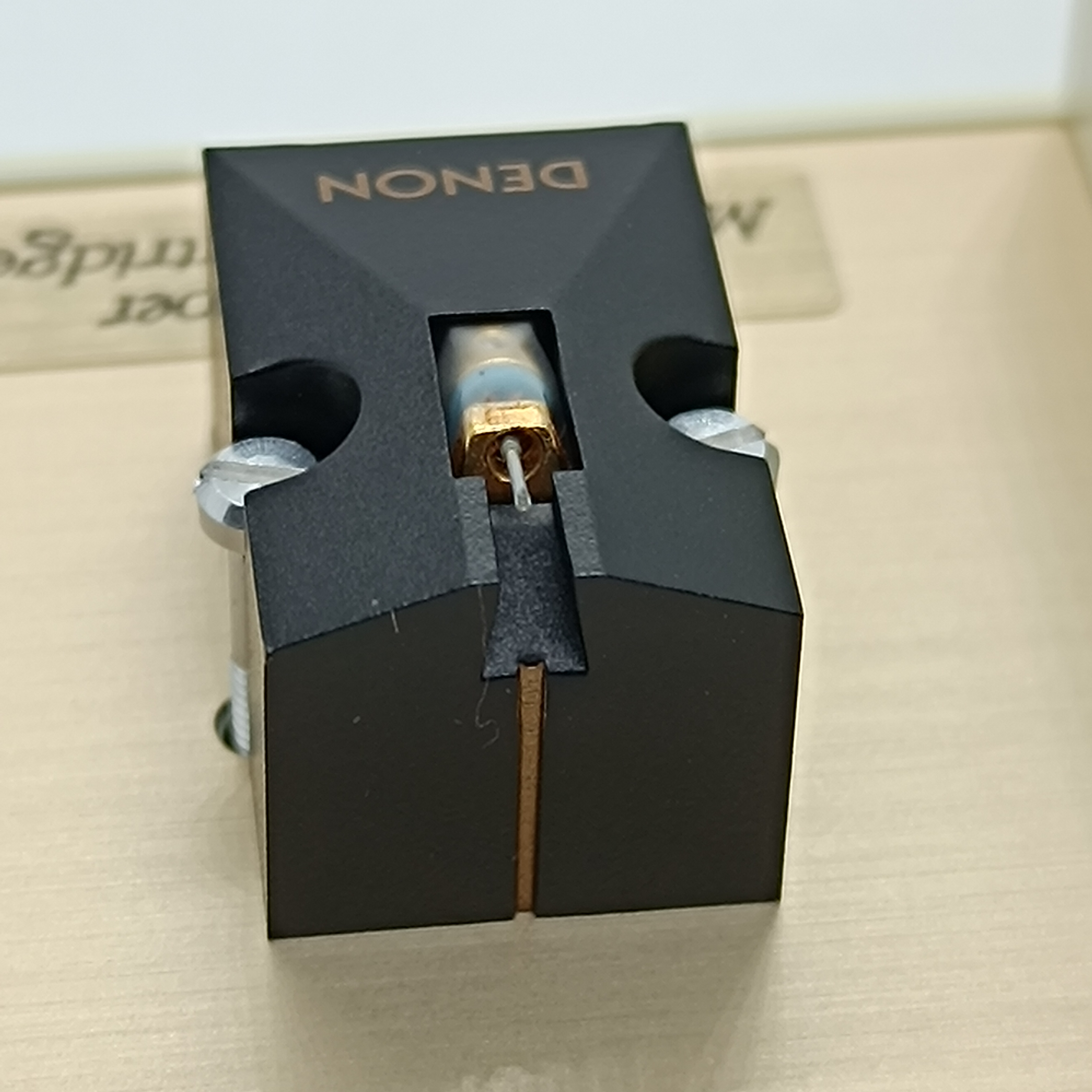

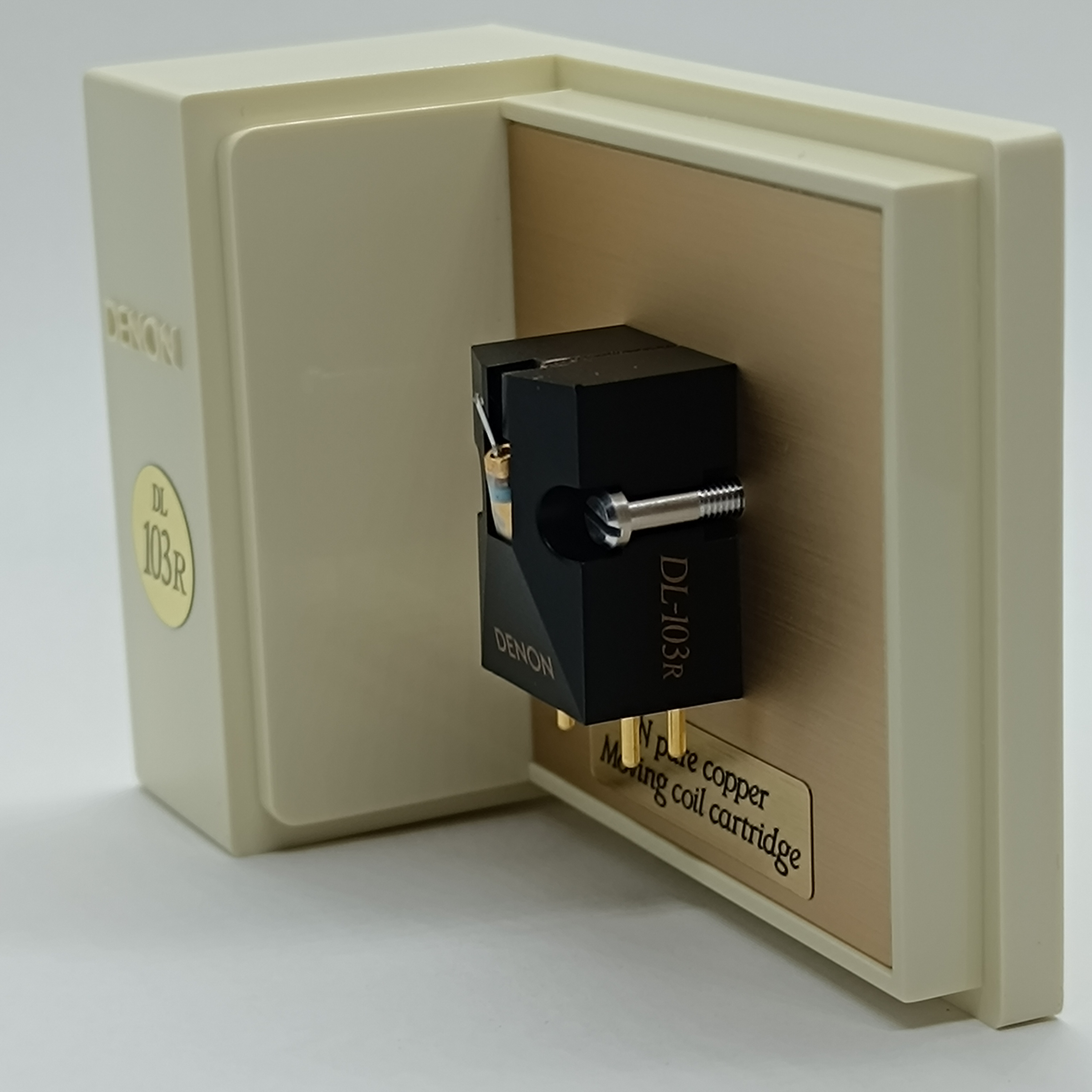

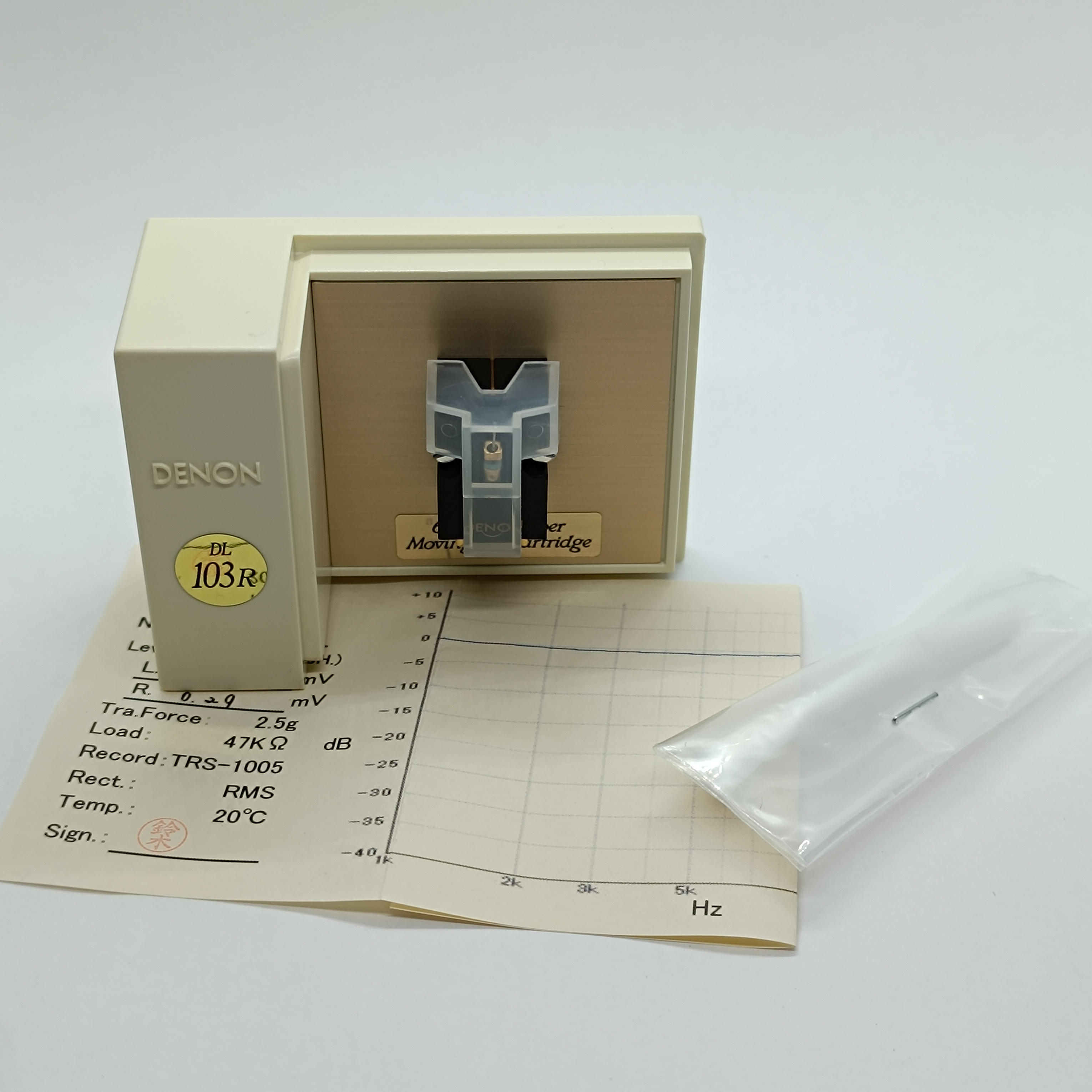

Improved version of the classic DL-103. Provides better sound thanks to 6N copper coil.

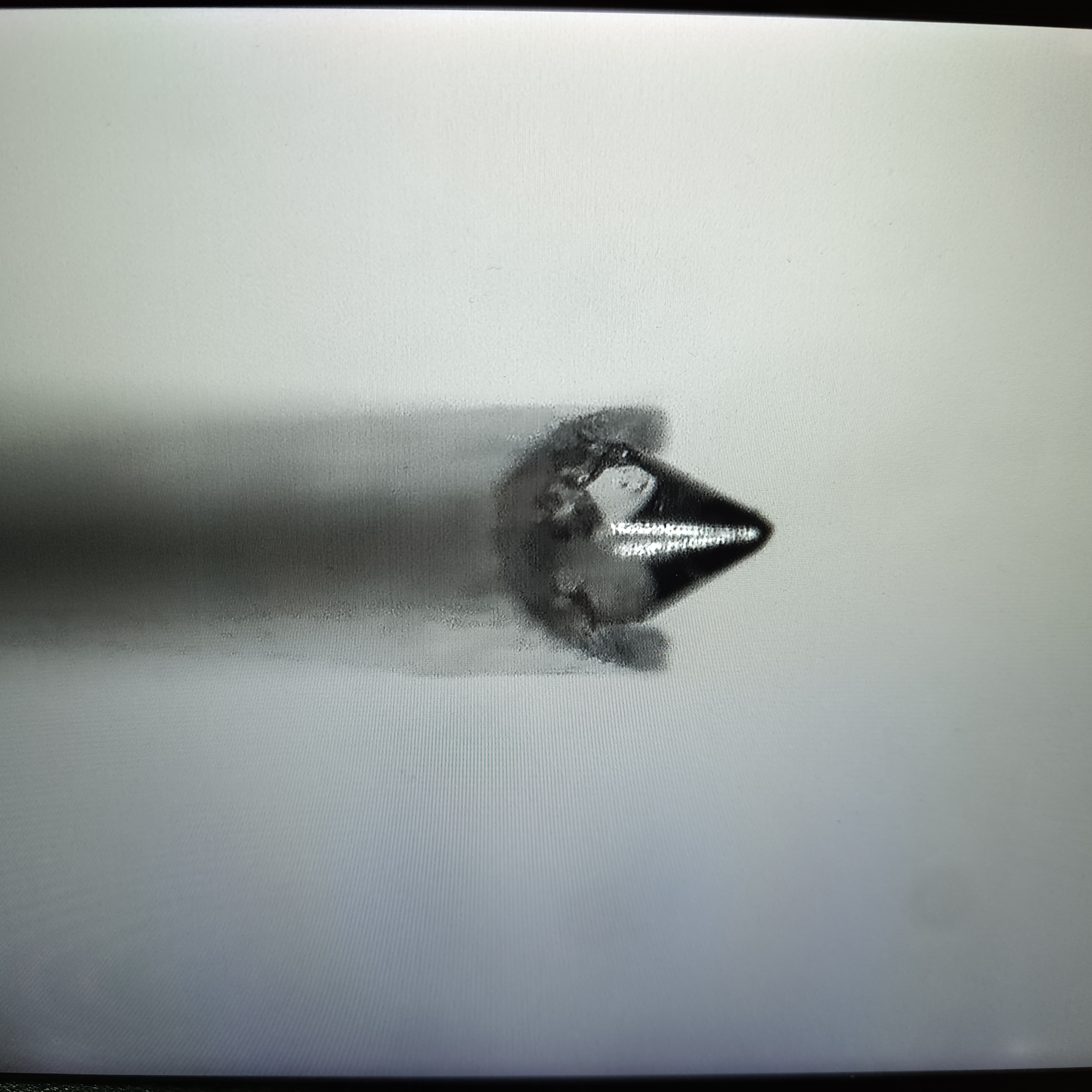

The stylus is made of a single piece of diamond with a special spherical shape.
Has excellent characteristics and excellent tracking ability. It has been on the market since 1962.Manufactured in Japan.
In the accessories you will find a brush for cleaning the tip.
Specification:
Double construction cantilever
High output MC cartridge
Output: 0,25 mV 1kHz 500mm/s horizontal
Stylus: special elliptical solid diamond
Cantilever: aluminum
Frequency range: 20 Hz to 45 kHz
Separation: more than 25dB
Sensitivity: 1dB or less
Compilance 5 x 10 -6 cm/dyne
Tracking force:nominal: 2,5 grams +/- 0.3g
Weight: 8,5g
output impedance of 14 ohms
frequency response: 20 to 45kHz
Load resistance: 100 Ohms
